Input

The input file tab supports both ASCII and XML format.

General features:

  • Syntax highlighting

  • Autocomplete

  • Context-sensitive online help

  • Use of variables

The syntax and the supported features depend on the tool used for calculations. For detailed information see related documentation:

Autocomplete feature

By using the key combination ‘ctrl’ plus ‘space’ the autocomplete menu will pop up. It will show available keywords for the current section as well as the names of defined variables.

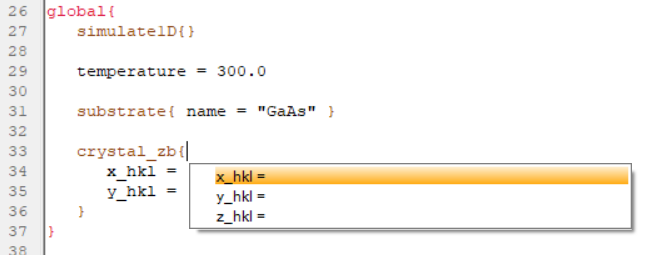

nextnanomat autocomplete menu

Figure 1.1.1 The nextnanomat autocomplete menu.
